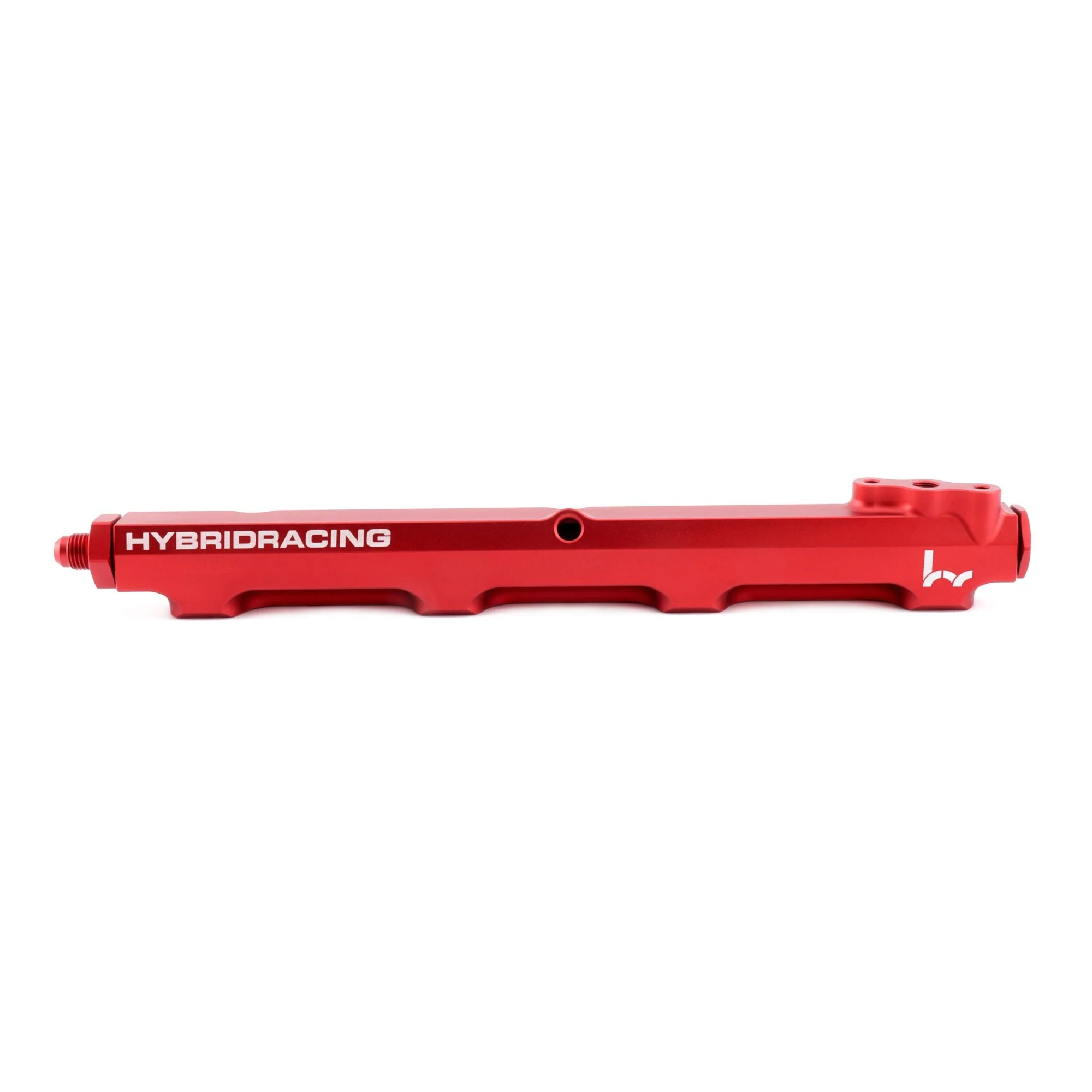

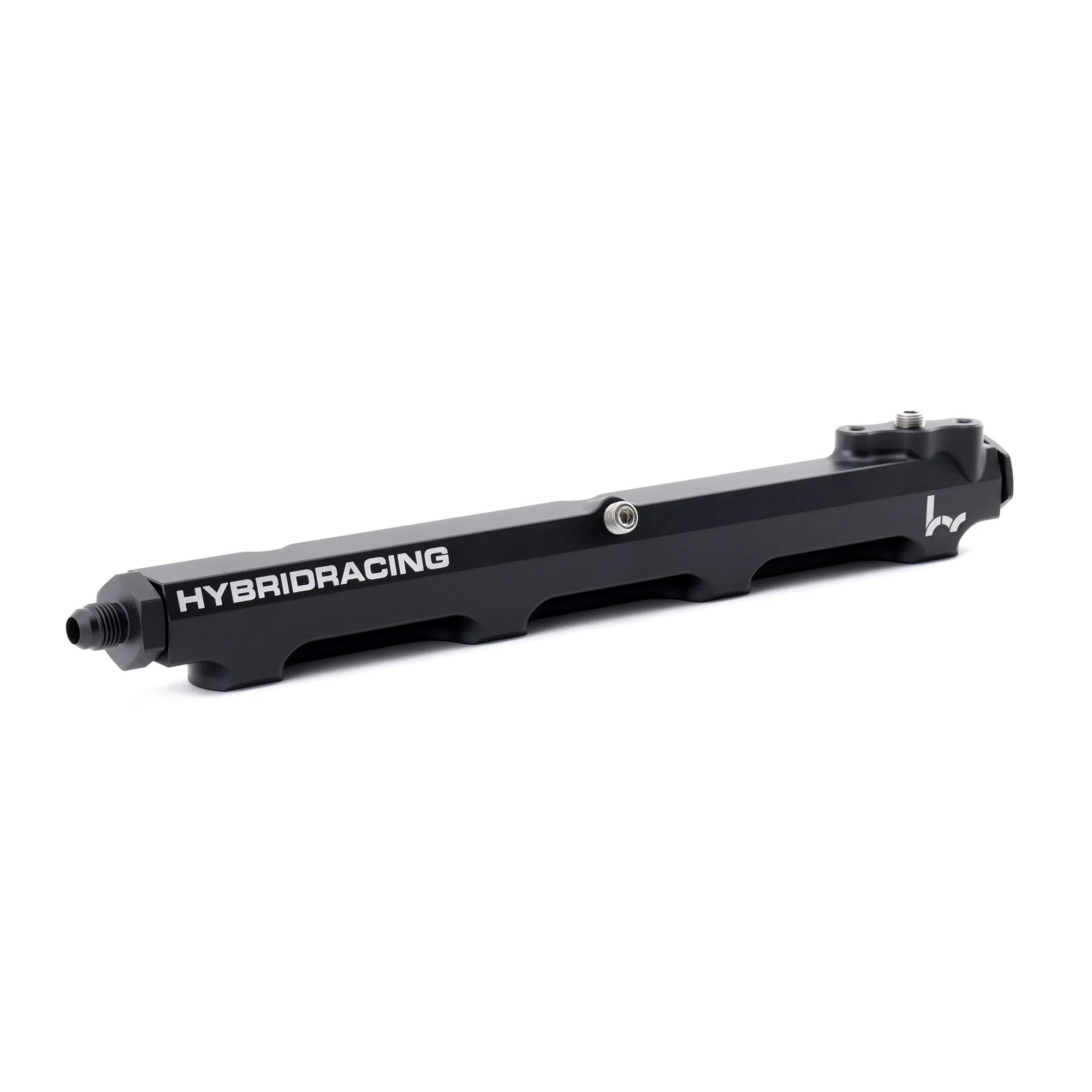

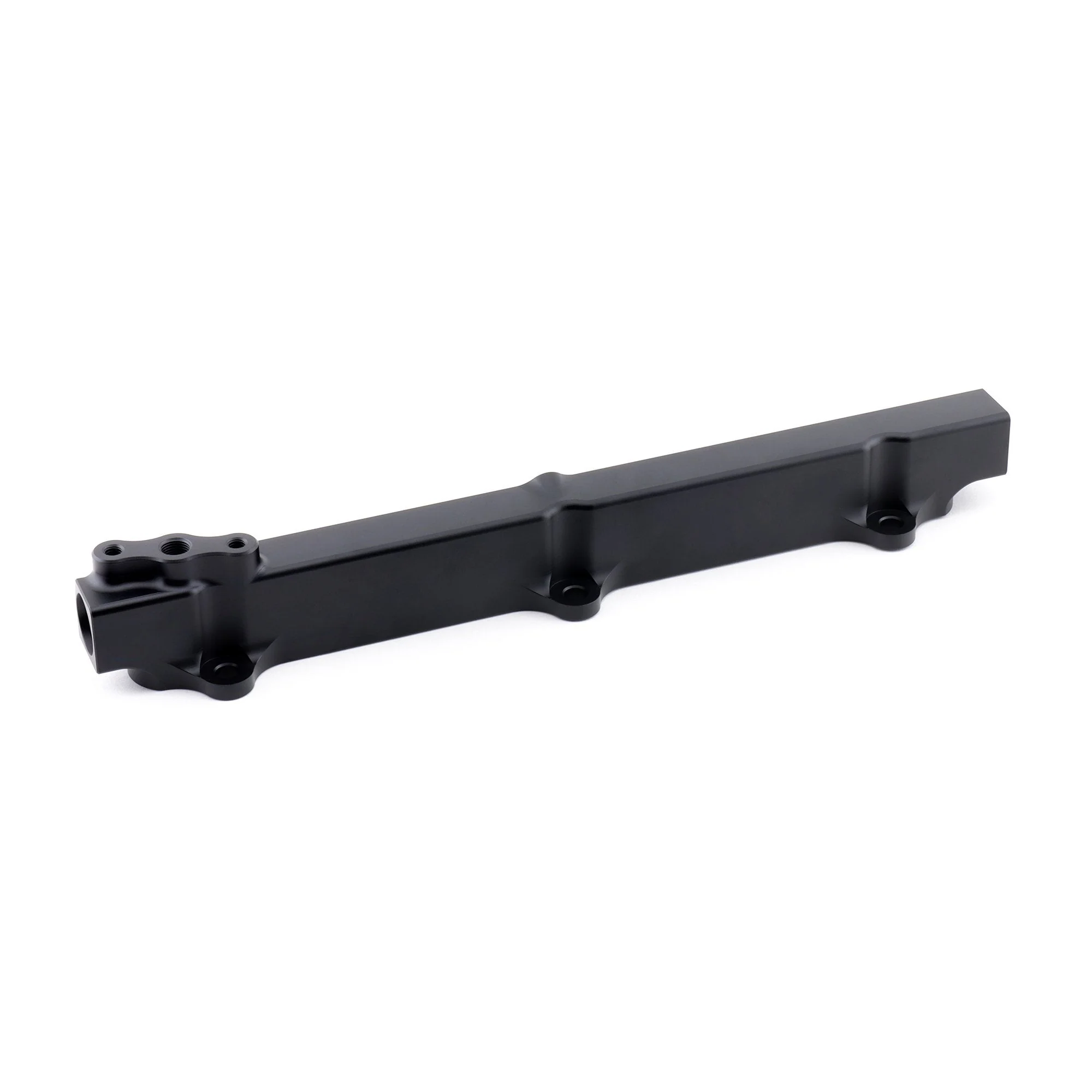

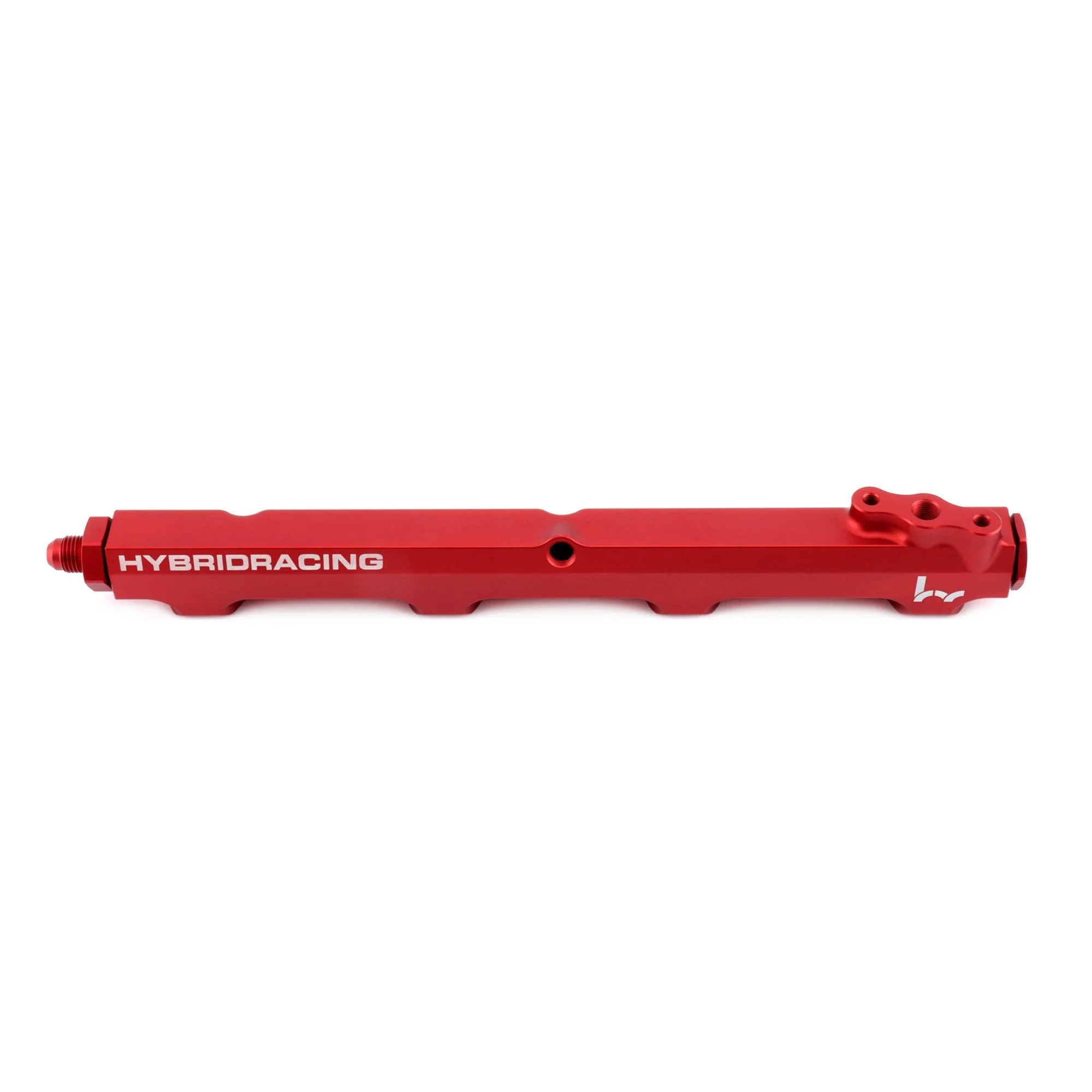

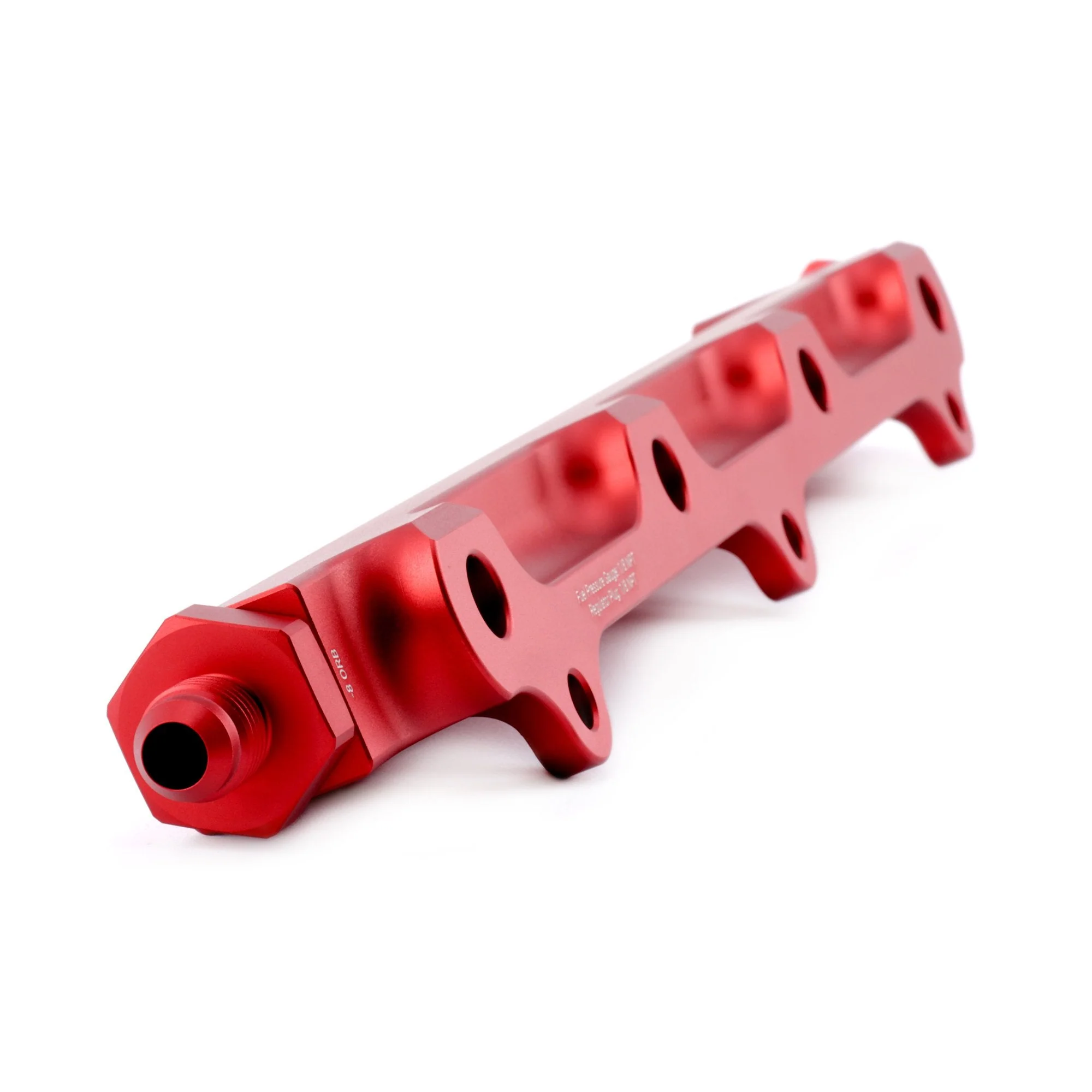

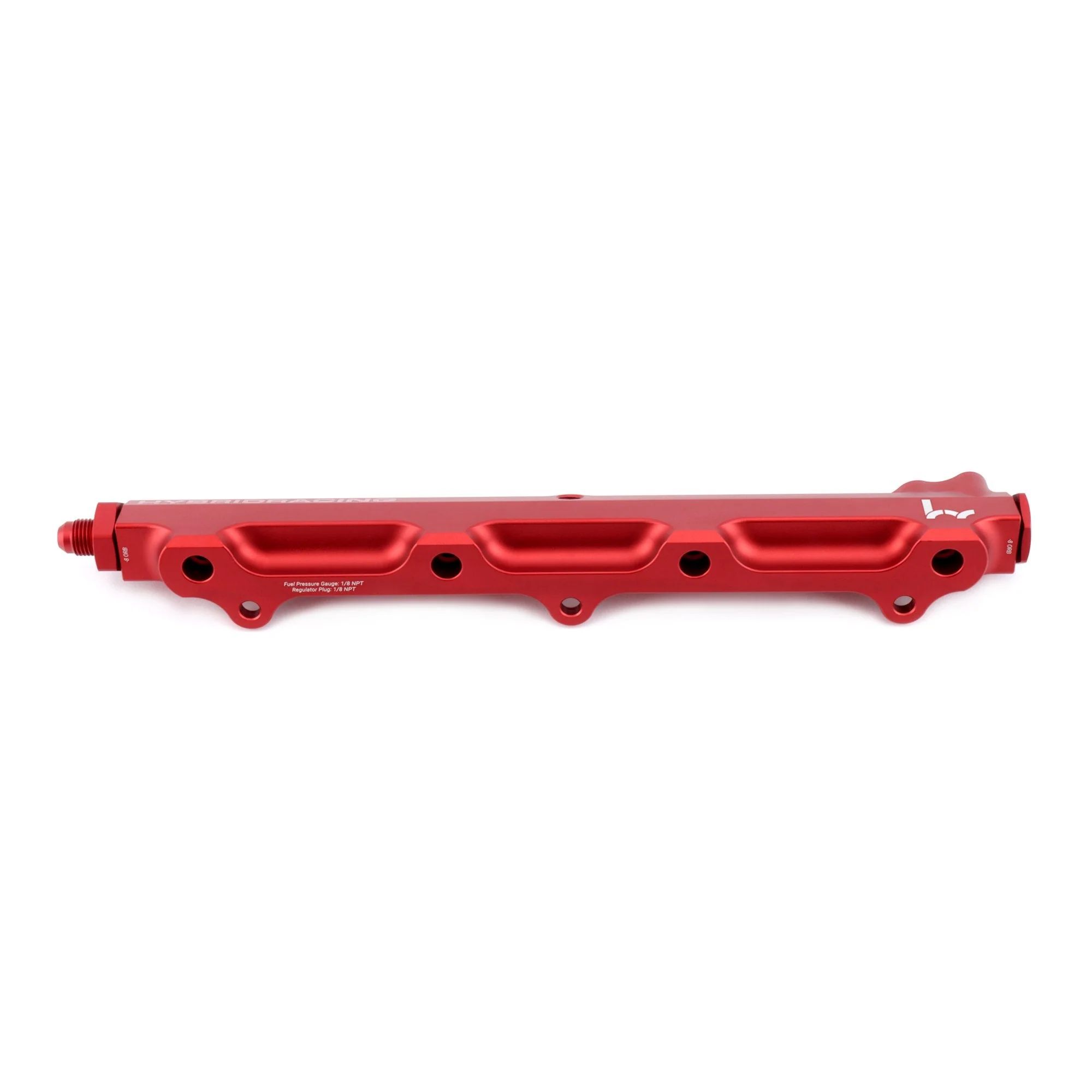

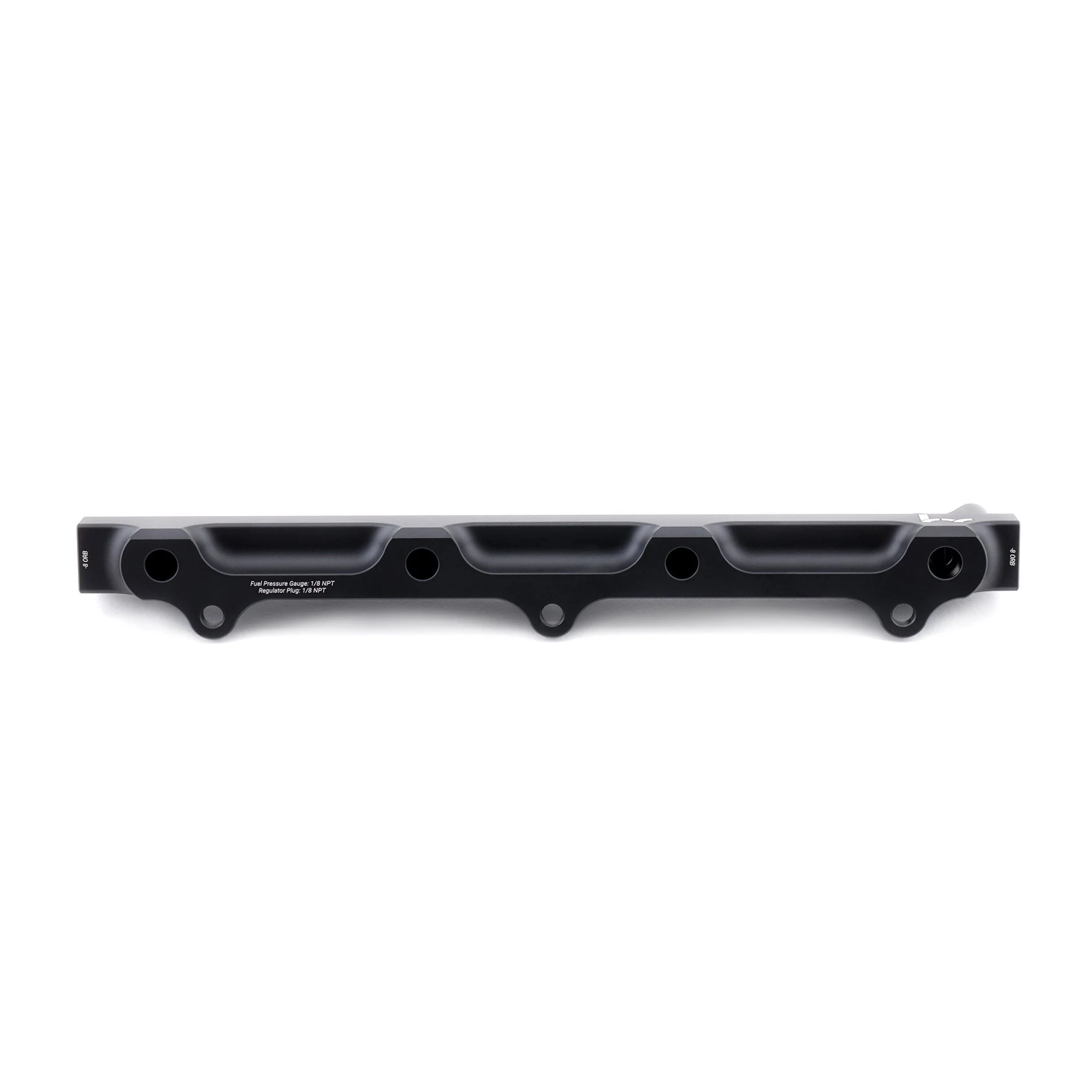

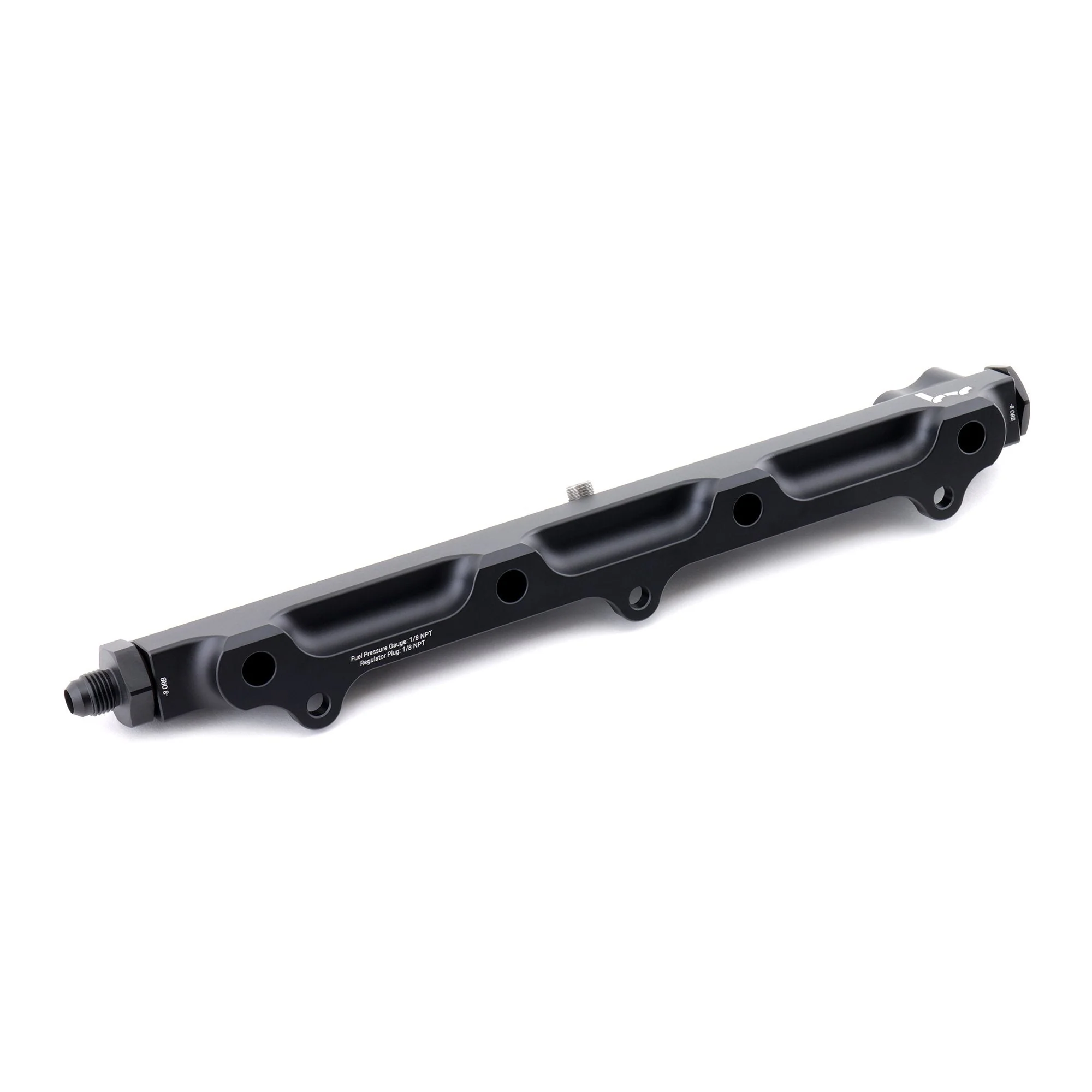

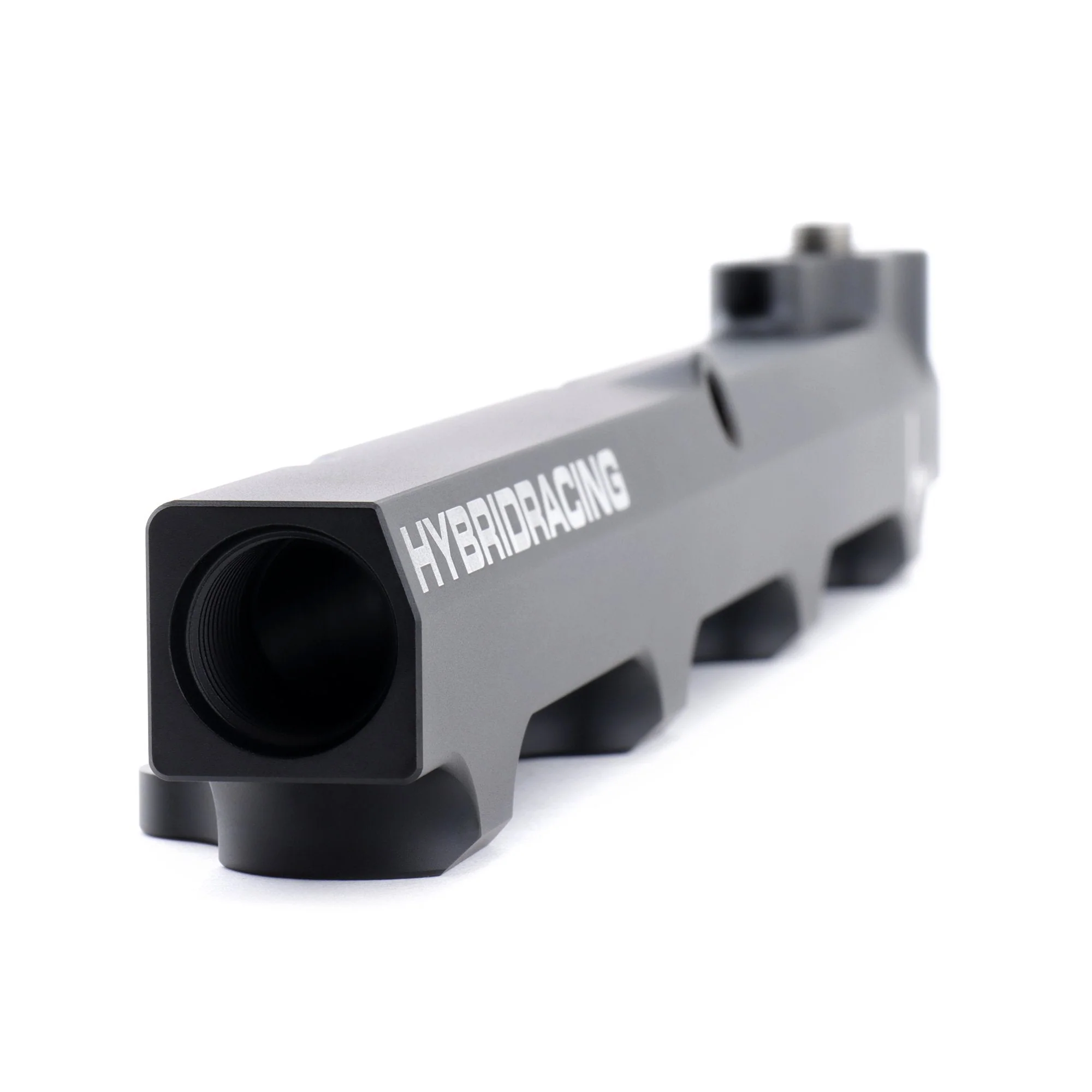

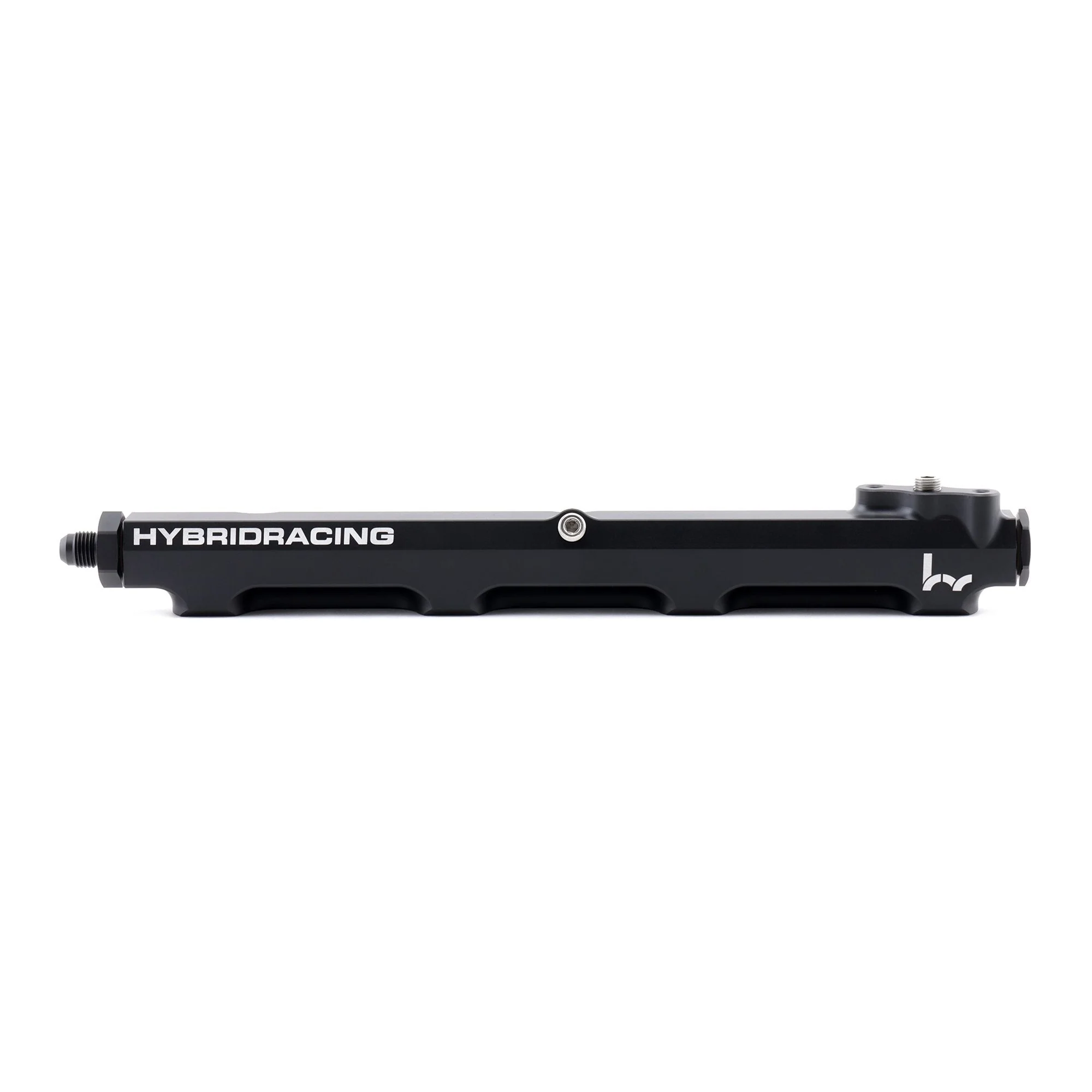

Hybrid Racing High-Flow Fuel Rail for Honda B Series

Hybrid Racing High-Flow Fuel Rail for Honda B Series

  • Universal B Series Engine Fuel Rail
  • One-Piece Machined Billet Aluminum

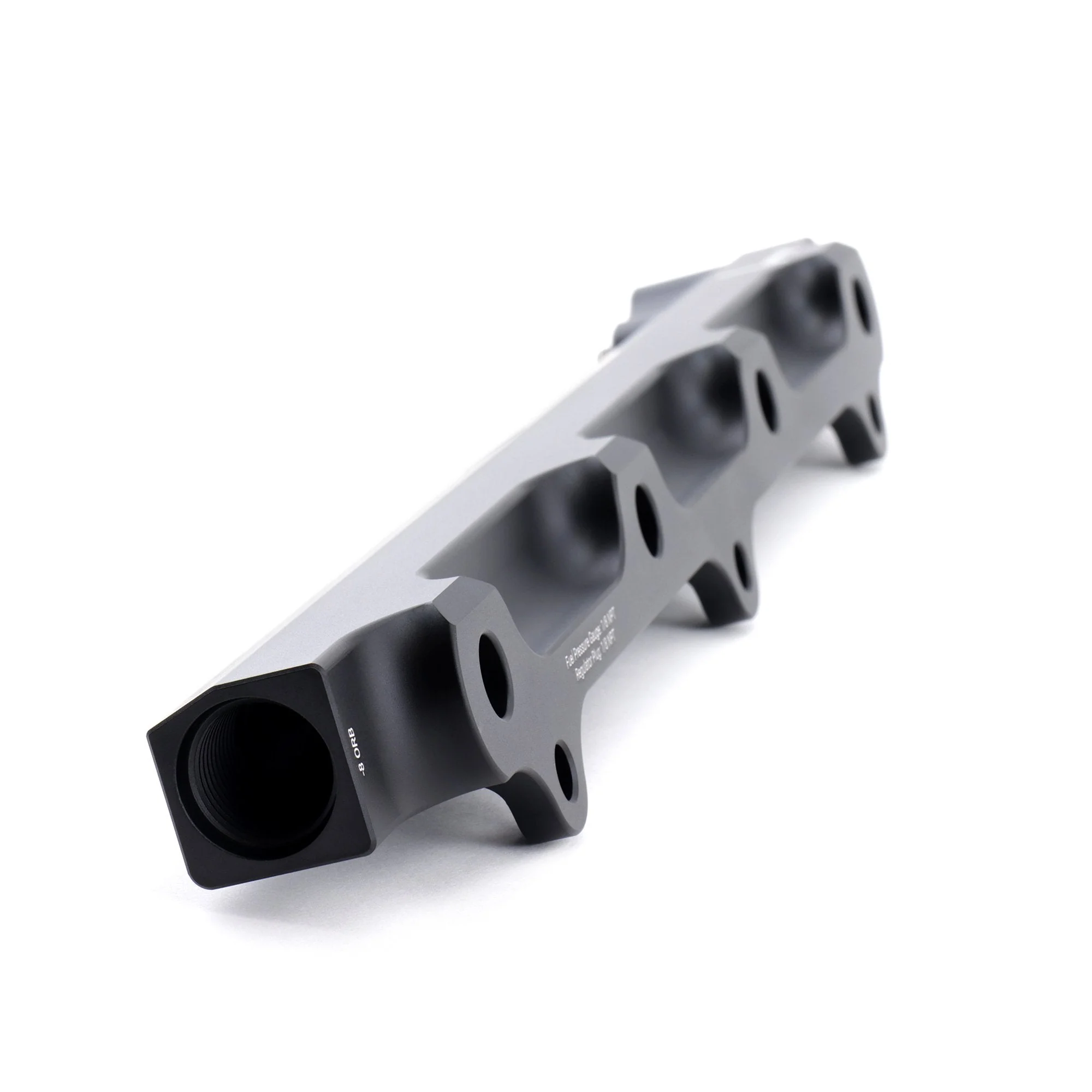

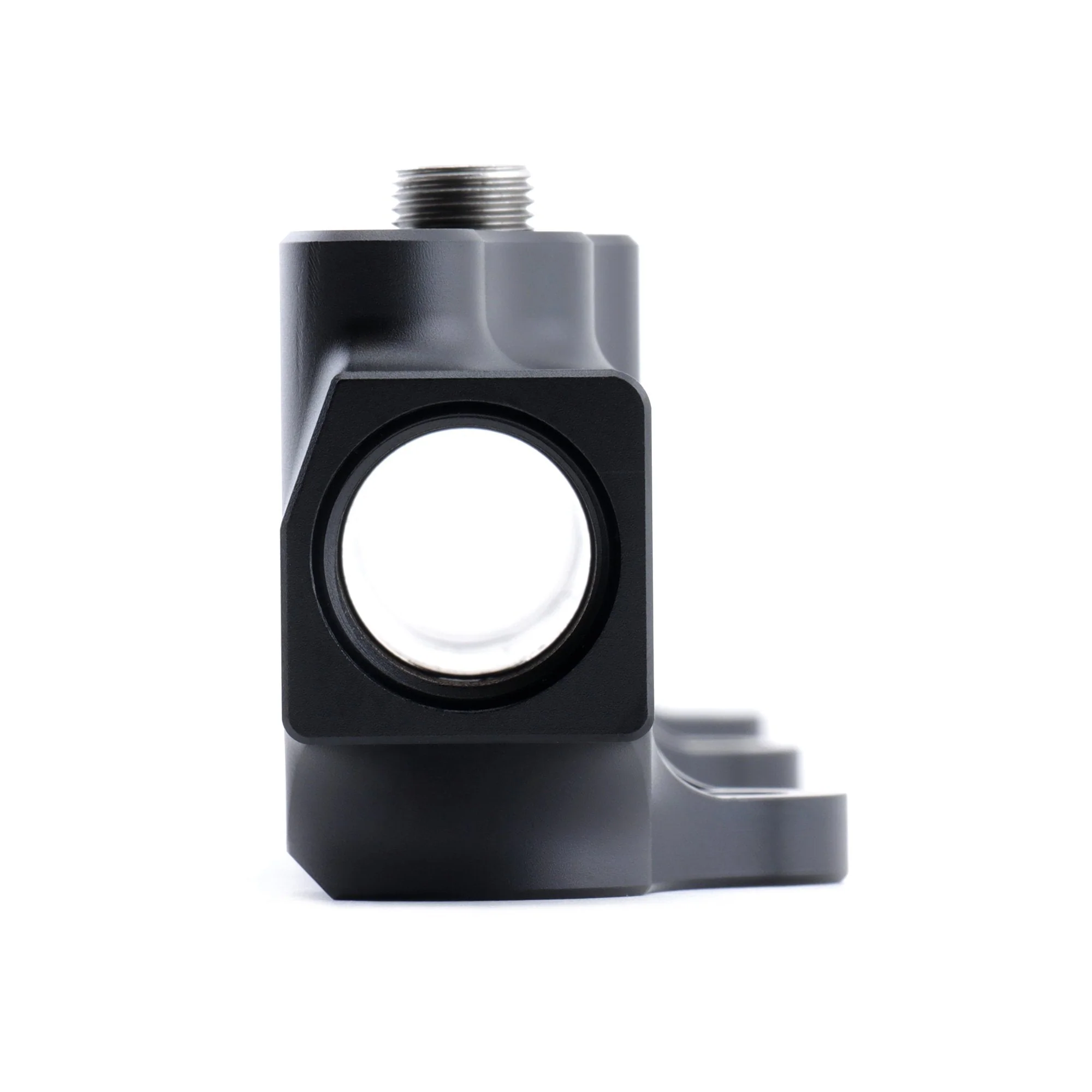

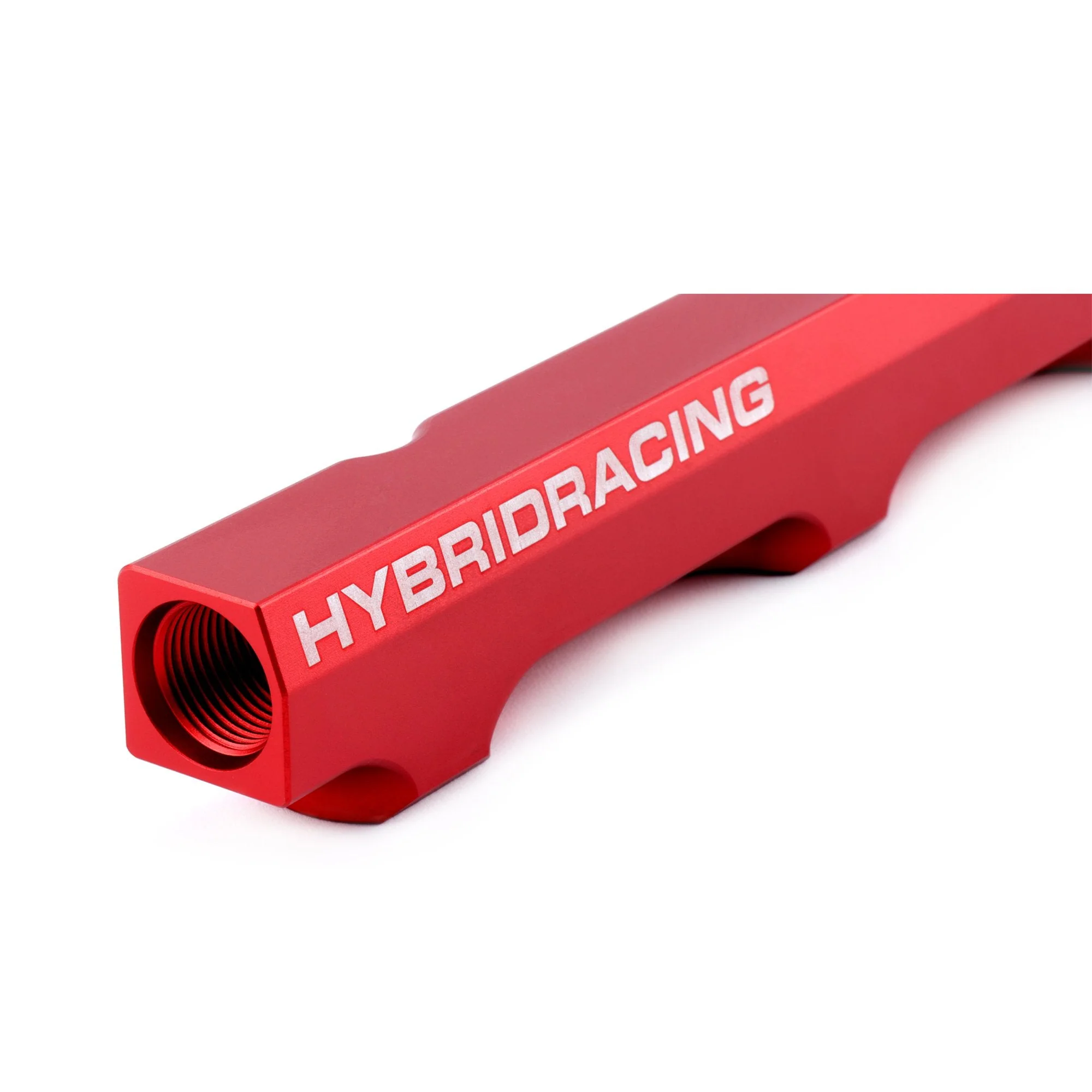

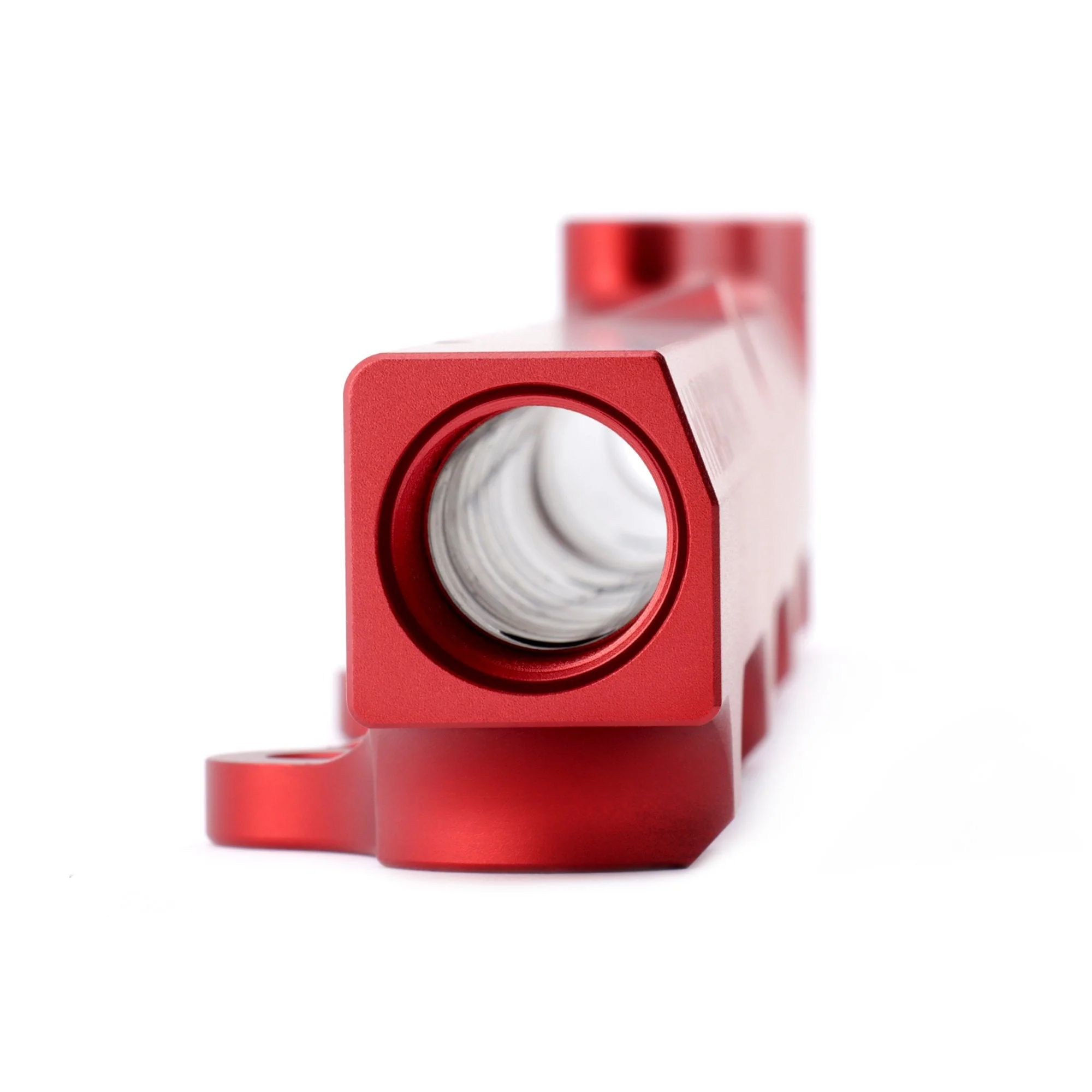

  • Large -8ORB Ports with a Large Center Bore

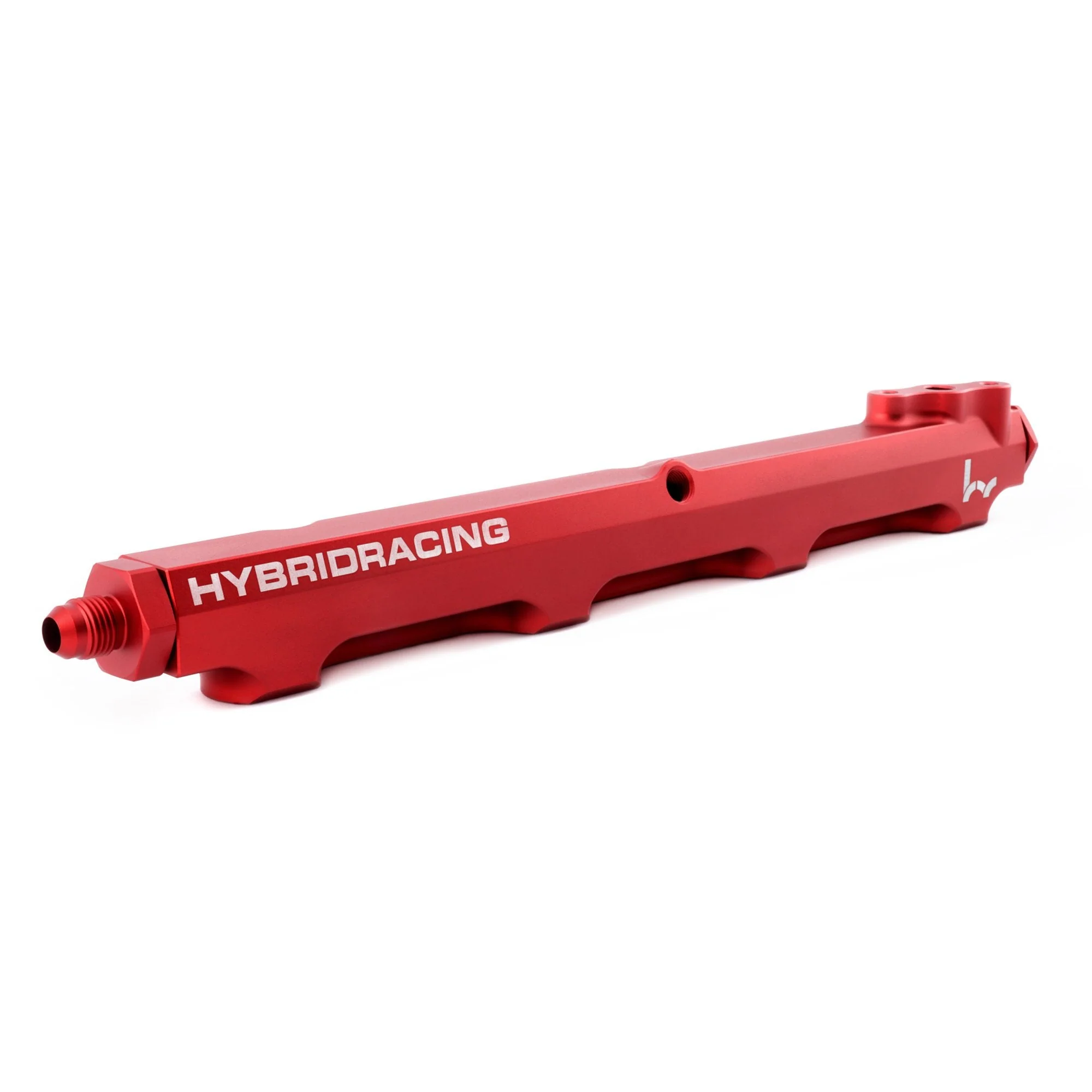

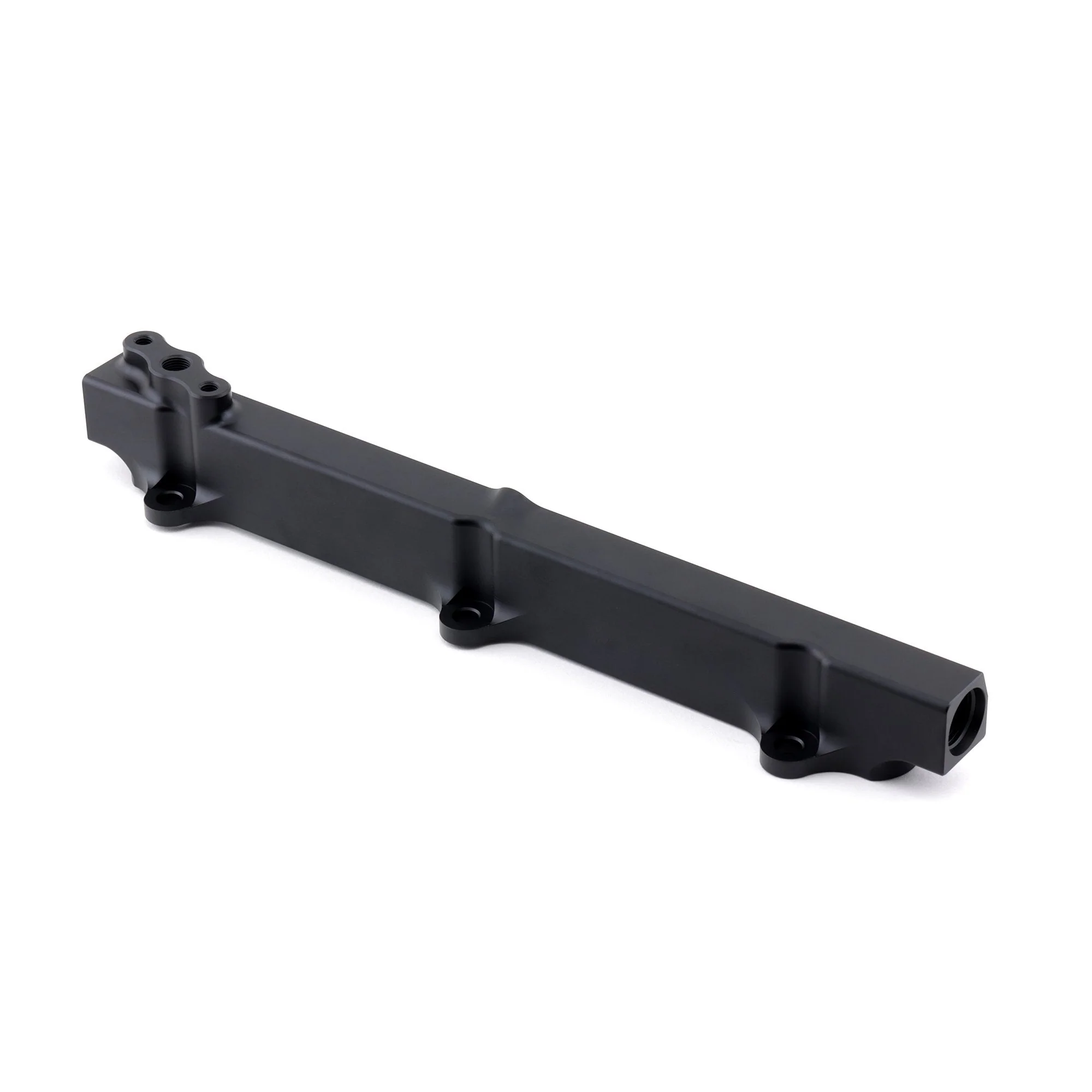

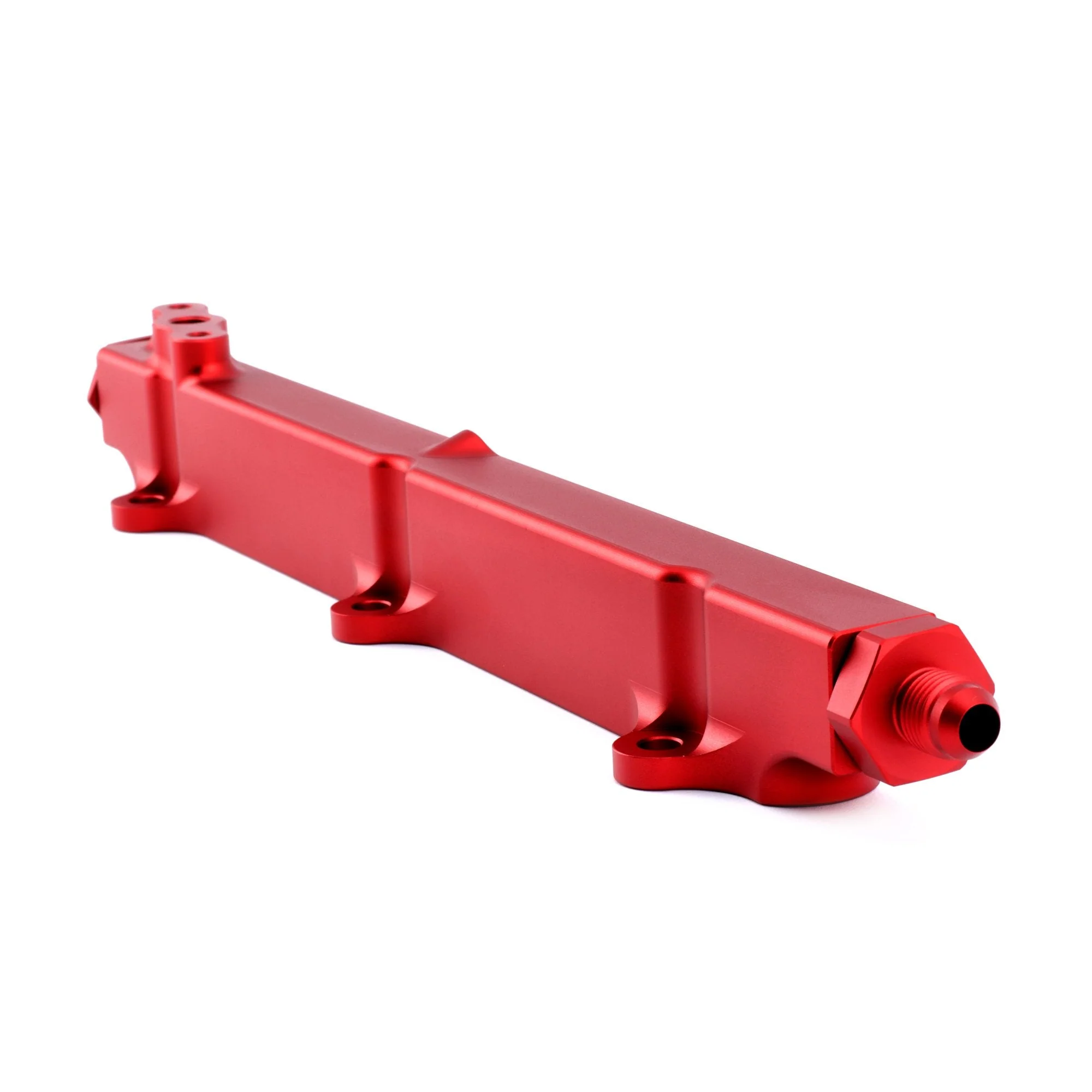

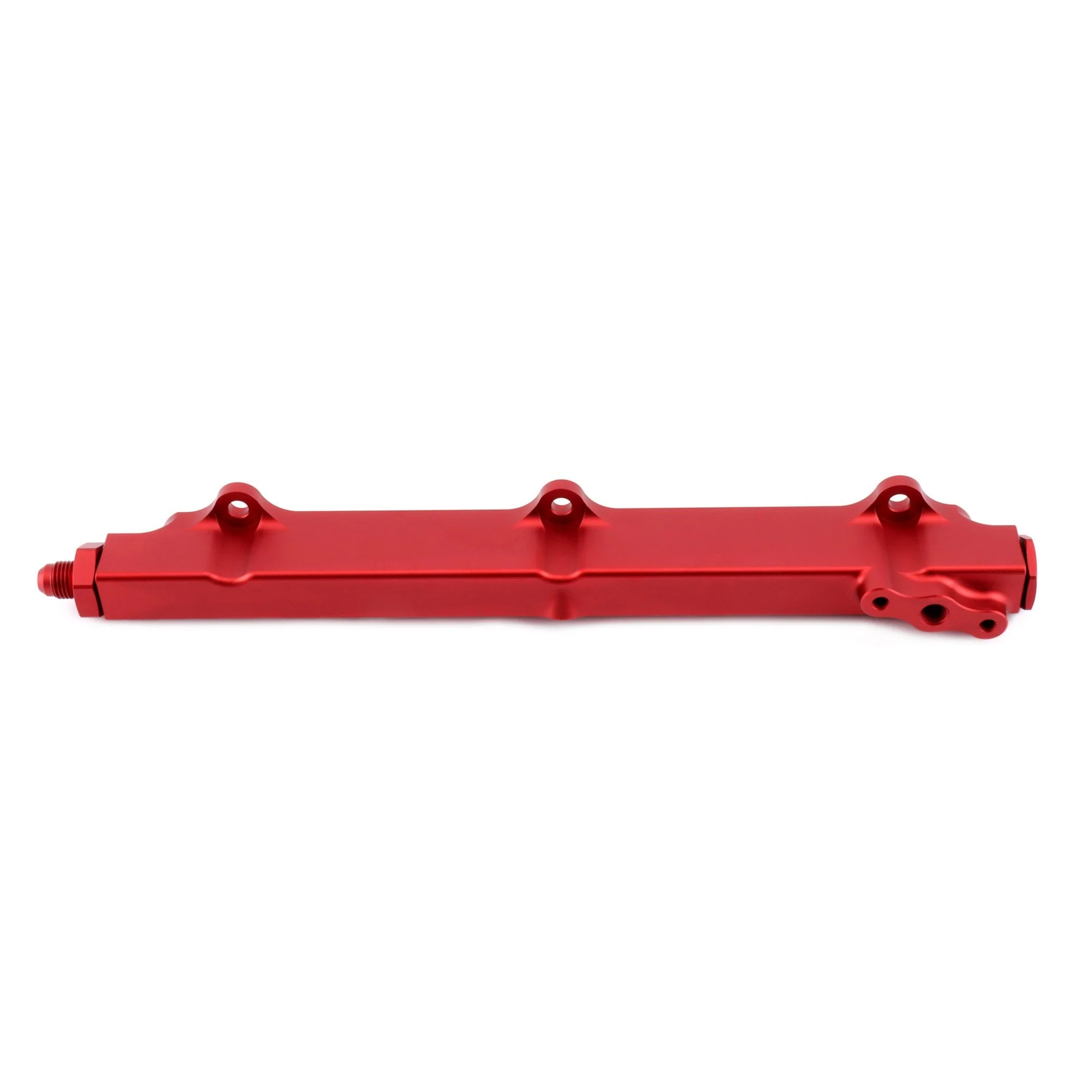

  • Dust Black or Dust Red anodized finish



  • Hybrid Racing fuel rails are made from 6061 aluminum with T6 heat treatment and feature our three-step Dust Black anodized finish with a laser-etched logo ensuring that your engine bay looks fresh and your engine stays fed!

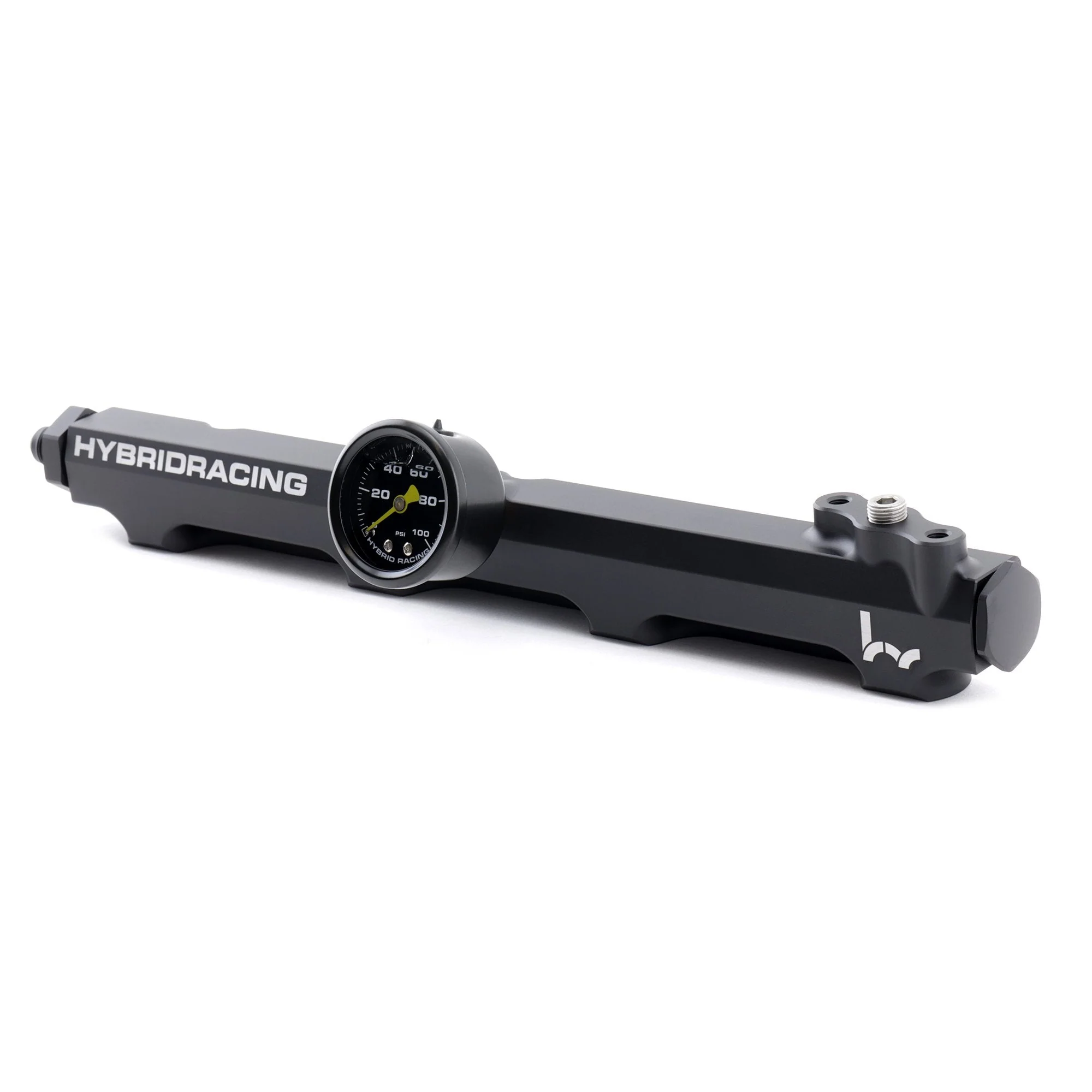

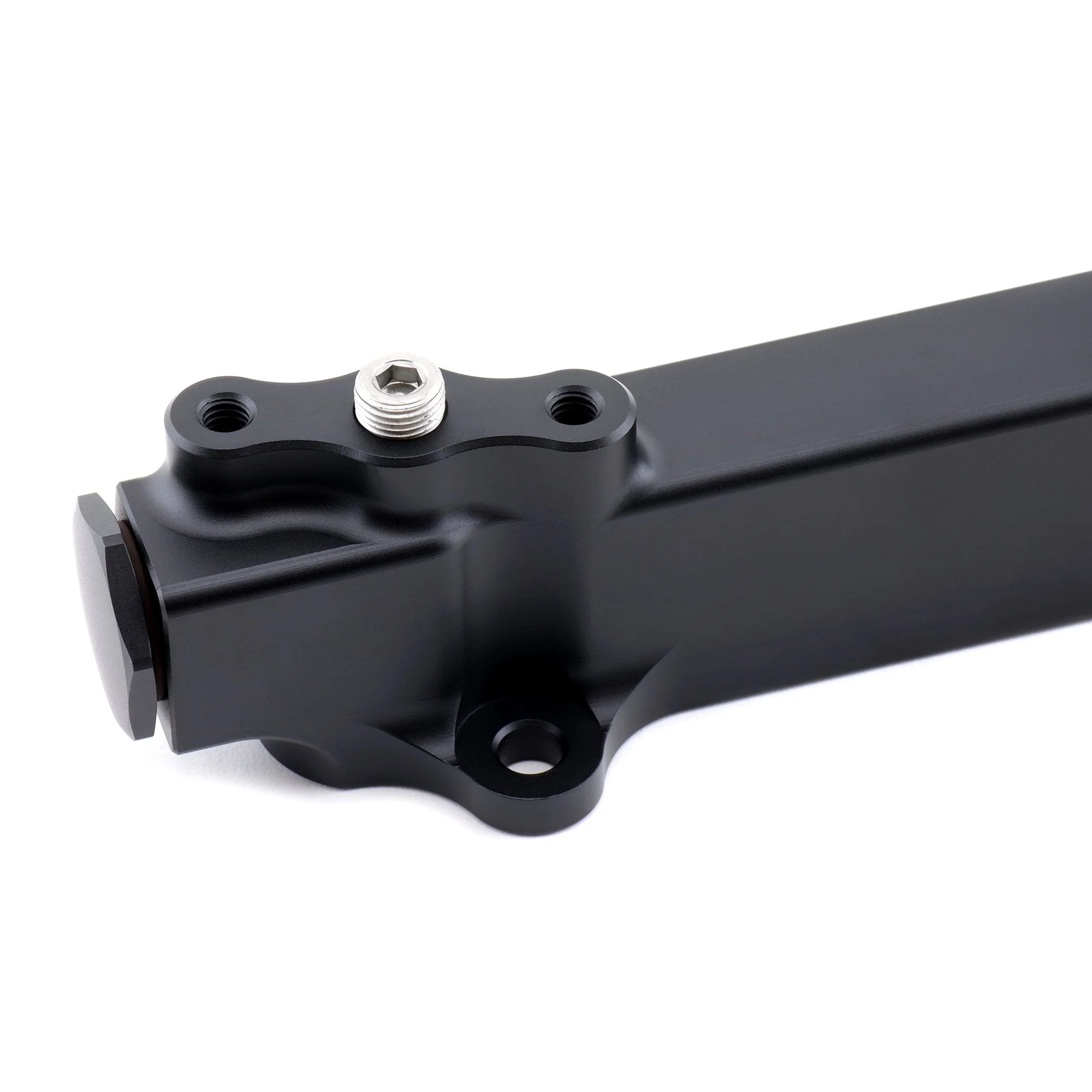

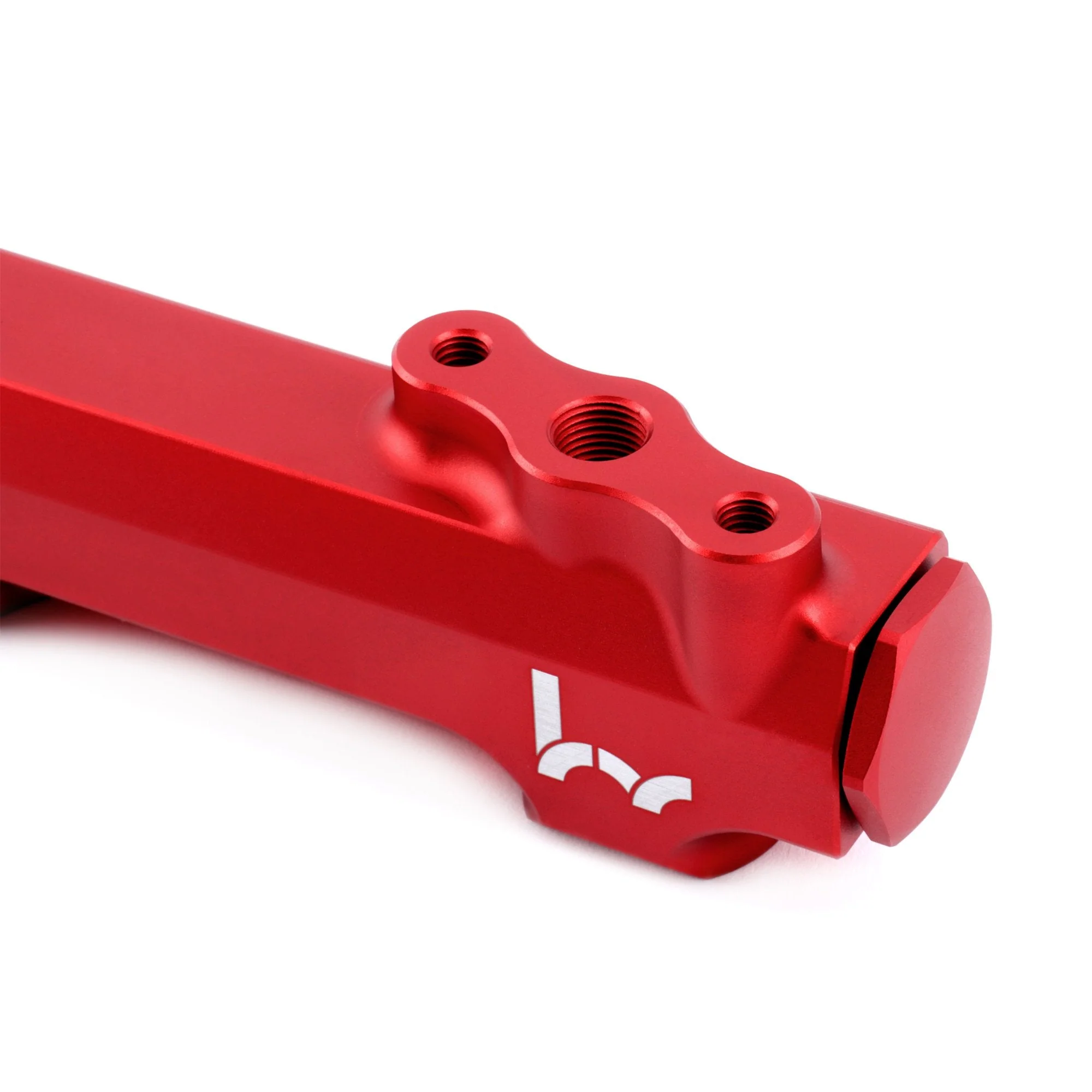

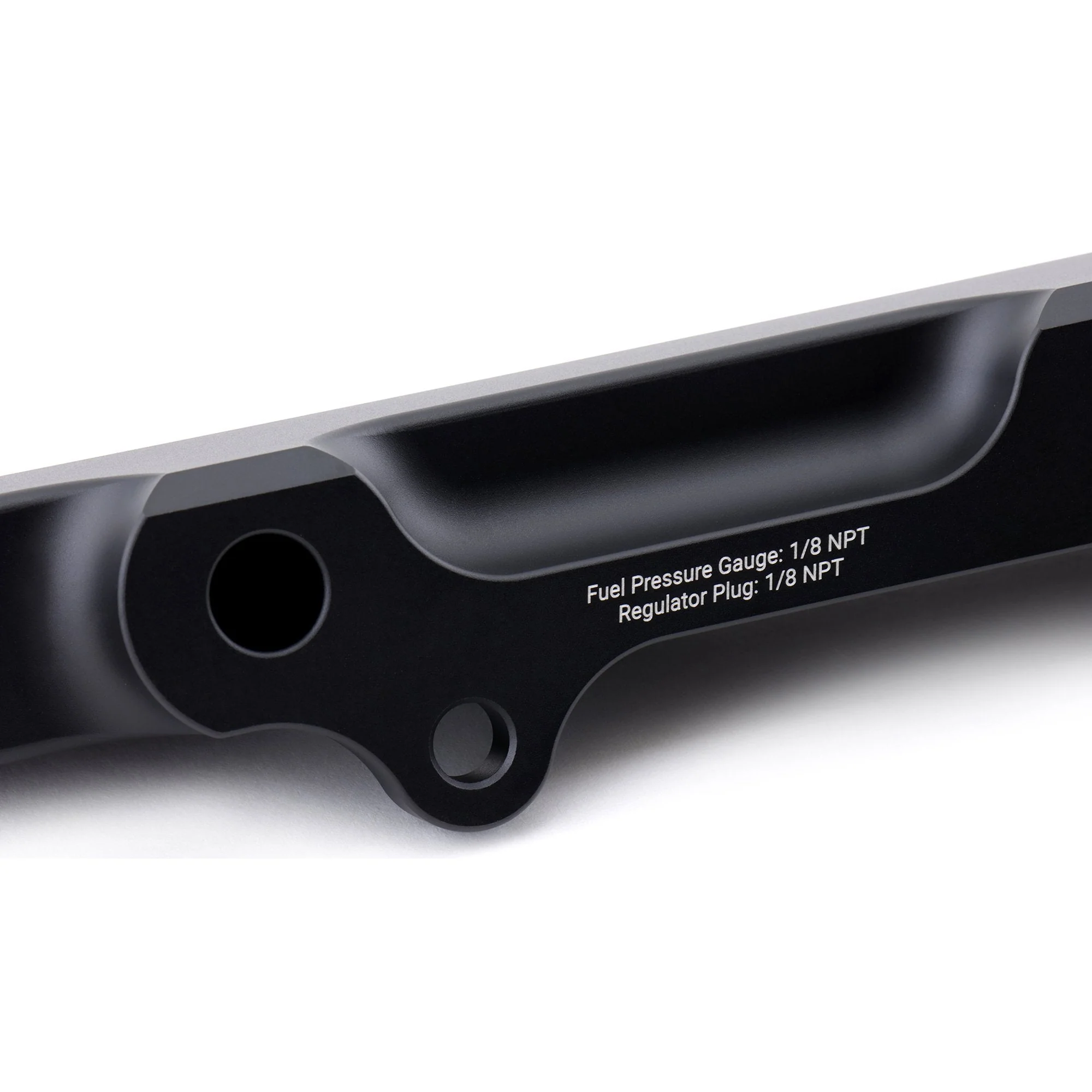

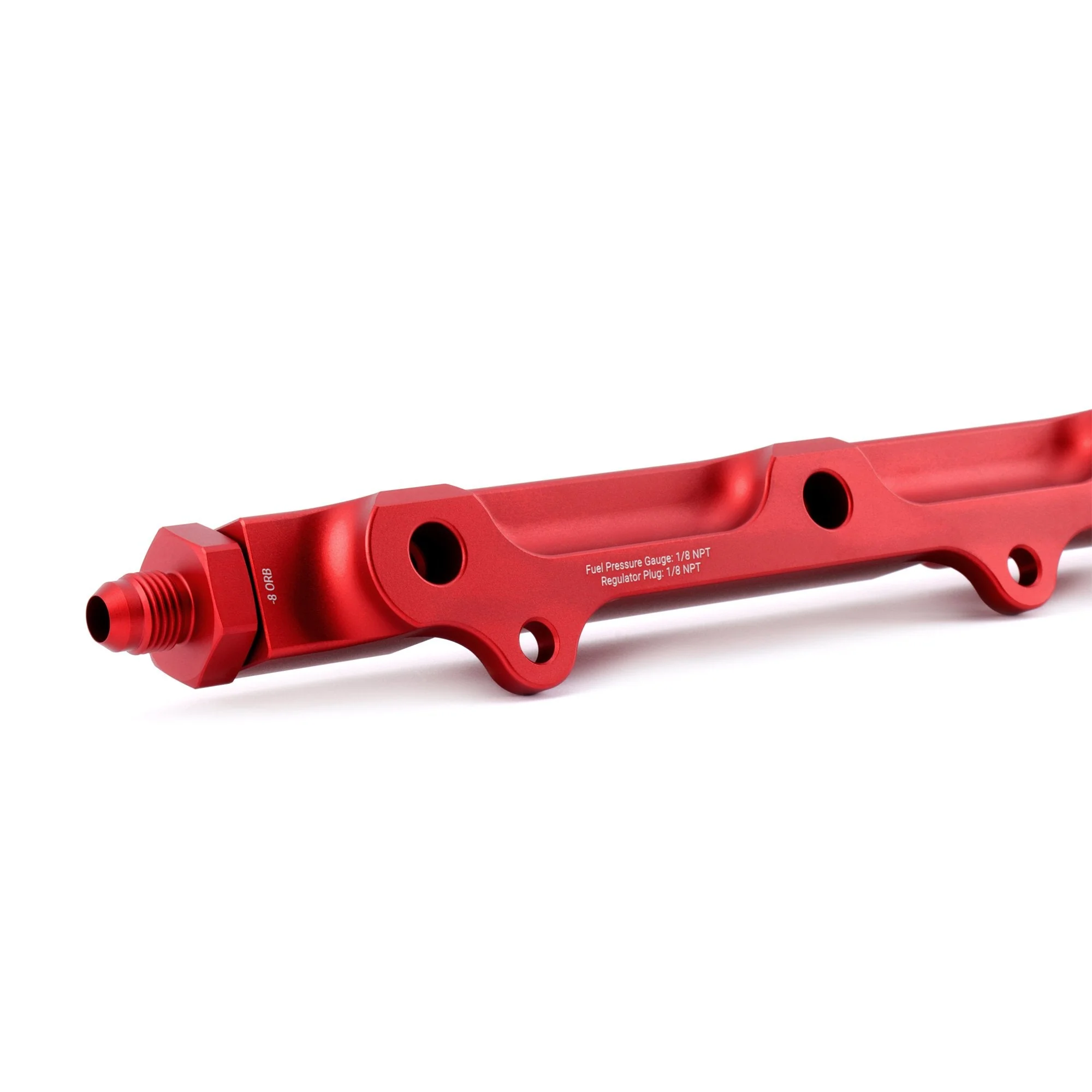

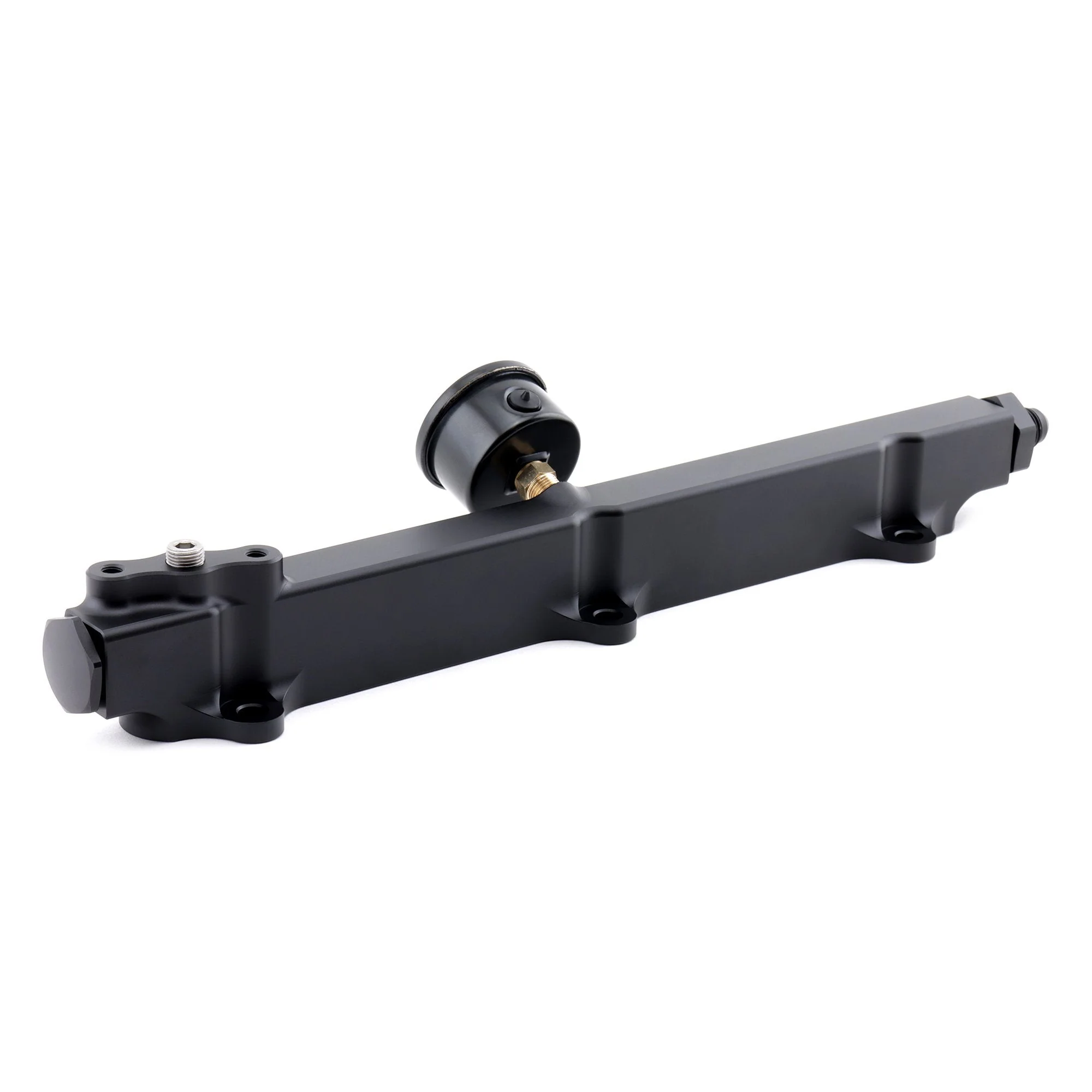

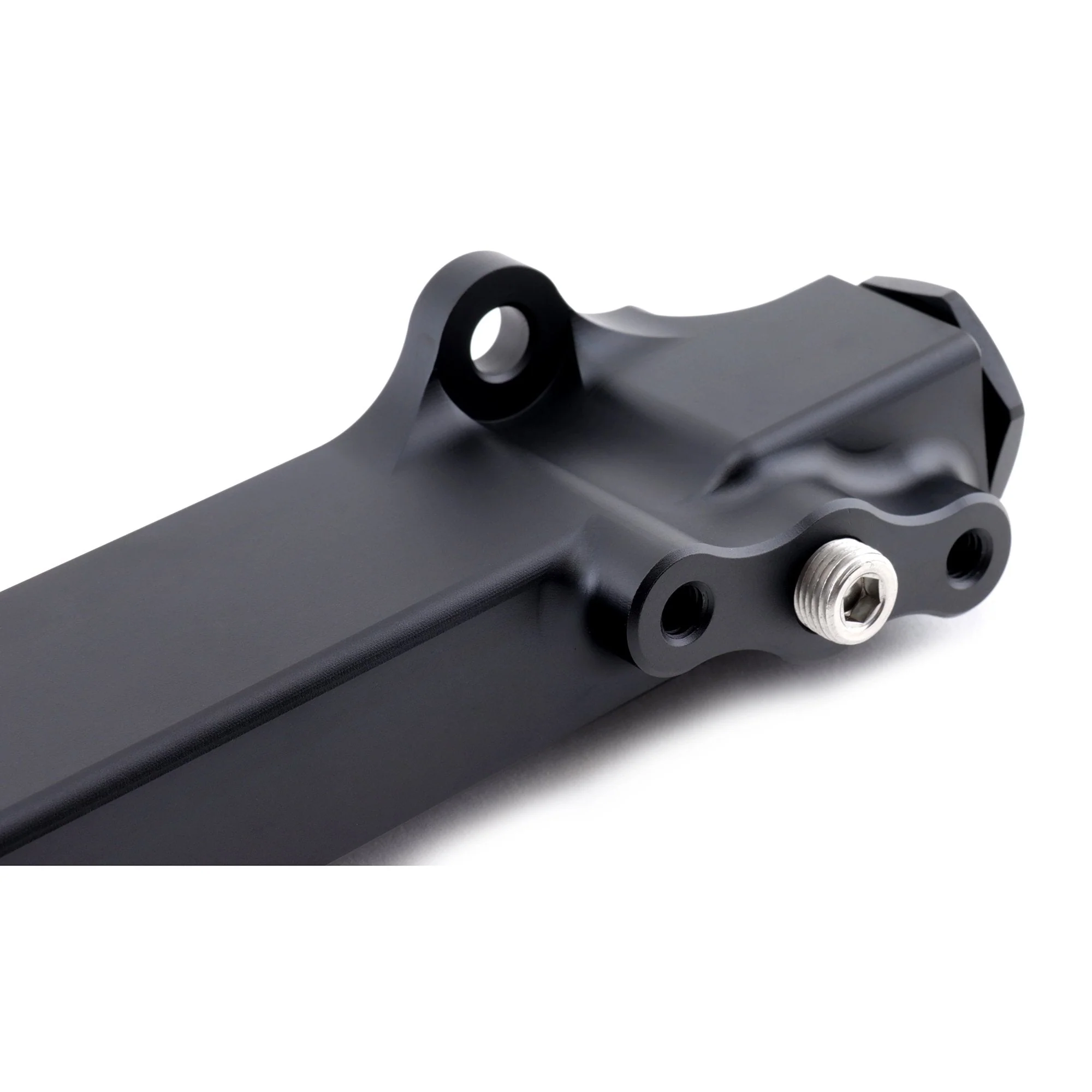

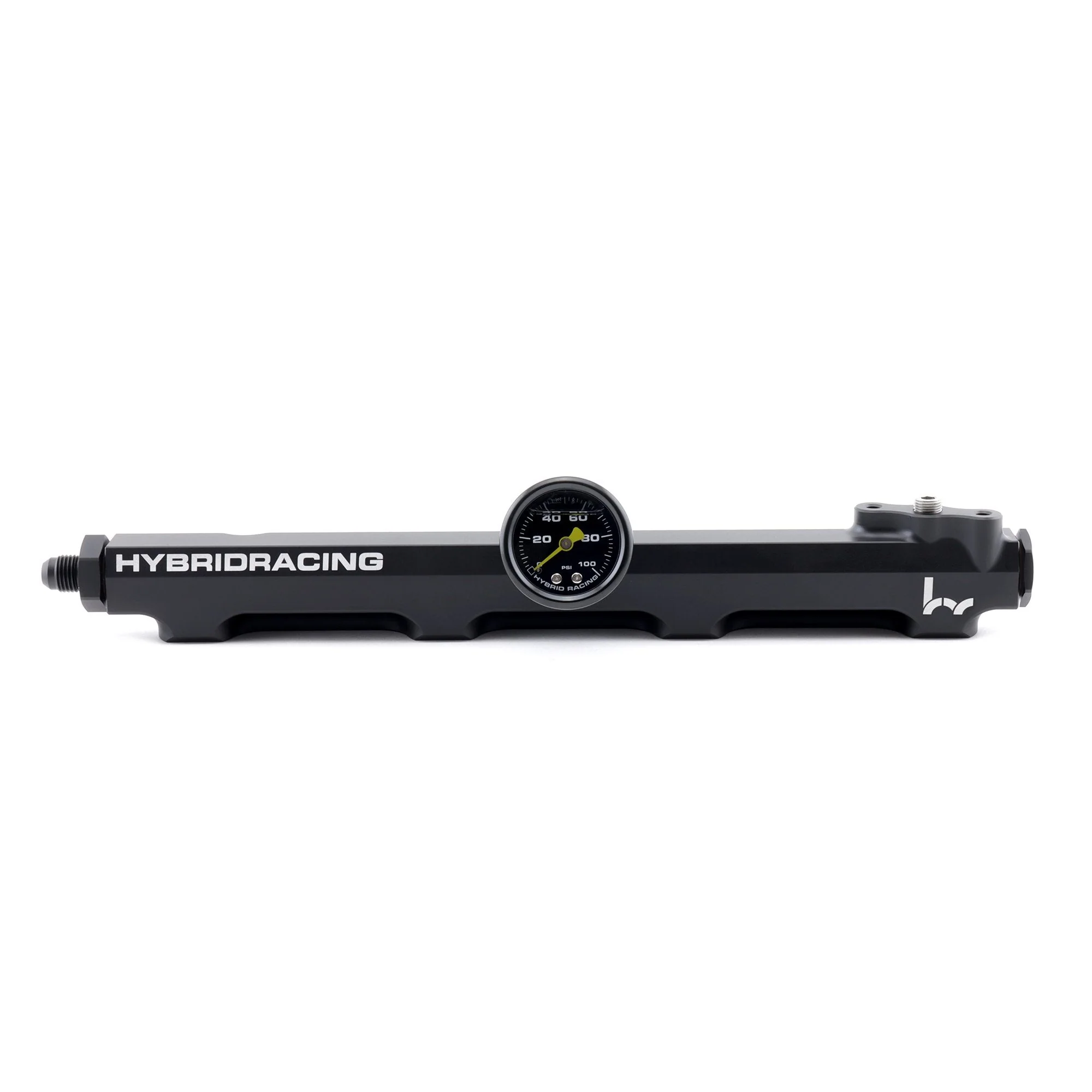

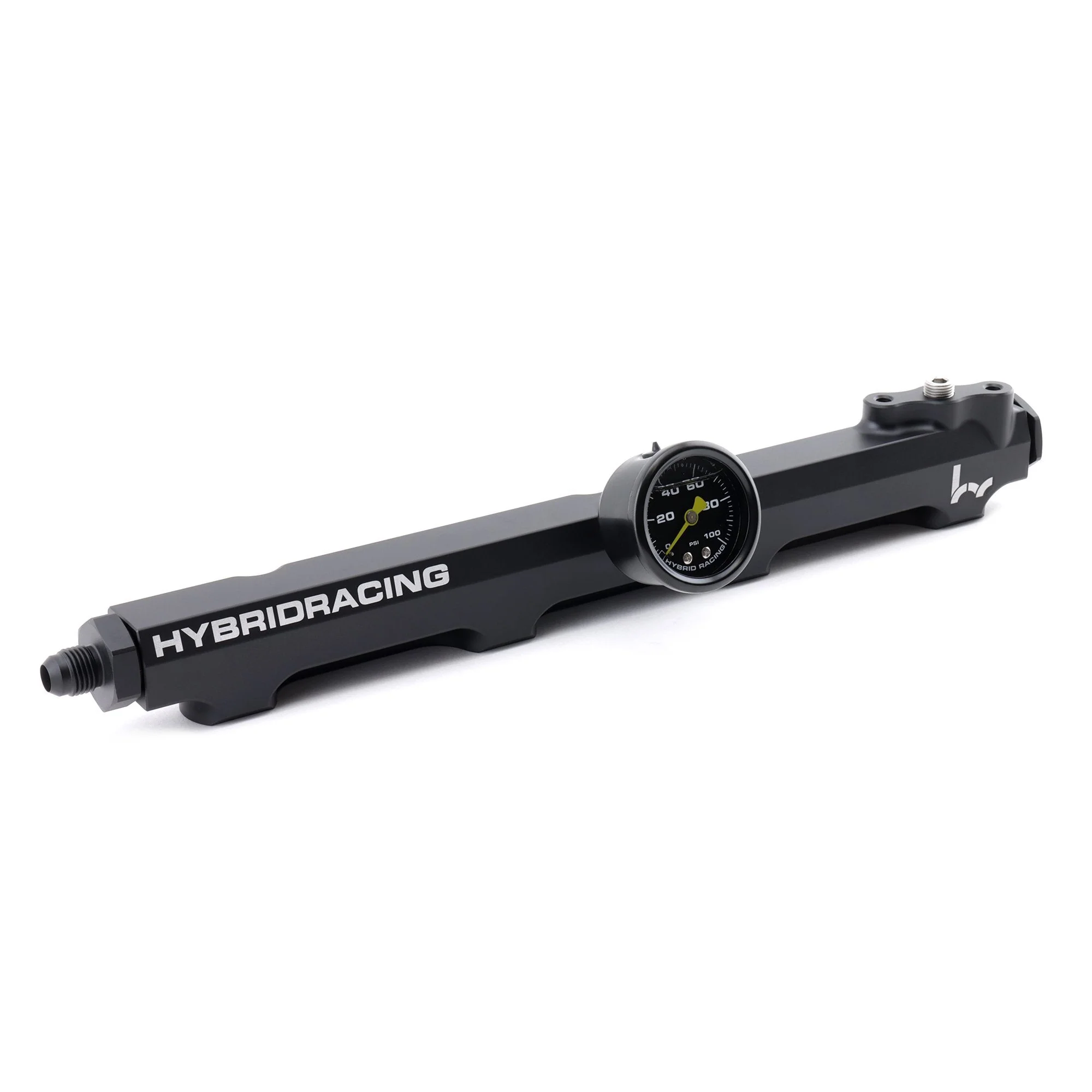

    Each rail includes a 1/8" NPT hole that allows you to mount a fuel pressure gauge directly to your fuel rail. This puts the fuel pressure gauge in an easily visible spot, so you don't have to poke around in the engine bay just to see if you have fuel pressure. All the ports can accept a -8 ORB fitting in the inlet(s) and outlet, allowing you to run either the OEM B-Series FPR or use the supplied 1/8th NPT plug and the side -8ORB port.

    What intake manifolds is this rail compatible with?

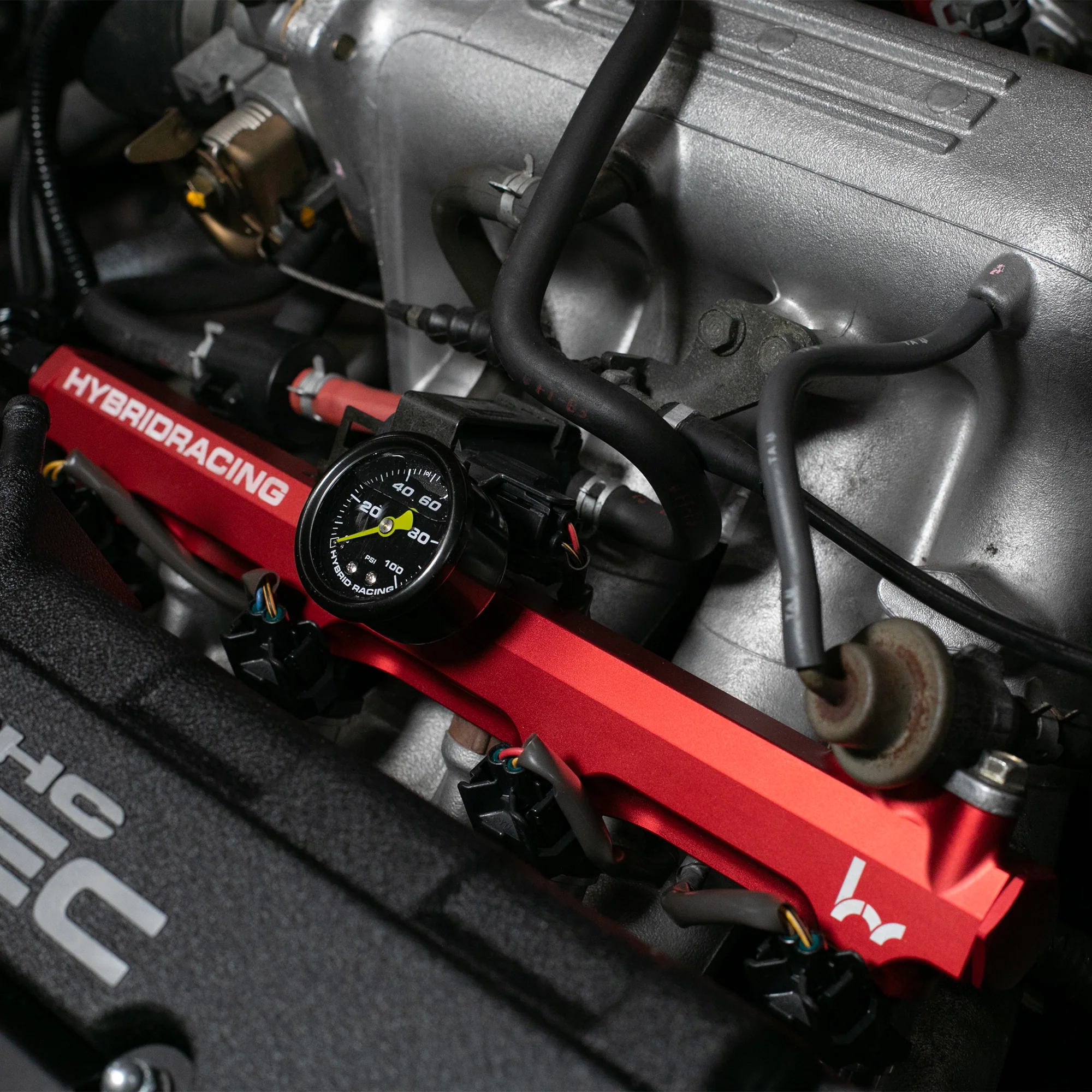

    This rail has been shown to mount to the most popular OEM Honda B-Series intake manifolds on the Honda B16 & B18 engines.

    Is this fuel rail universal?

    Since this fuel rail requires an aftermarket fuel line, there is no specific or direct bolt-on application. It is a universal fuel rail that must use an aftermarket fuel line as it is incompatible with the OEM B-Series fuel line.

    We suggest using our fuel line kit with this rail, item HYB-FLK-01-10

  • 1989-2001 Acura Integra
    1988-2000 Honda Civic
    1993-1997 Honda Del Sol
    1997-2001 Honda CR-V
  • (1) B-Series Fuel Rail
    (2) -8 ORB / -6AN Adapter fitting
    (1) -8 ORB Plug
    (2) 1/8th NPT Plug
  • View Install Guide HERE
Select Color
From $57.00

Original: $189.99

-70%
Hybrid Racing High-Flow Fuel Rail for Honda B Series—

$189.99

$57.00

Product Information

Shipping & Returns

Description

  • Universal B Series Engine Fuel Rail
  • One-Piece Machined Billet Aluminum
  • Large -8ORB Ports with a Large Center Bore
  • Dust Black or Dust Red anodized finish



  • Hybrid Racing fuel rails are made from 6061 aluminum with T6 heat treatment and feature our three-step Dust Black anodized finish with a laser-etched logo ensuring that your engine bay looks fresh and your engine stays fed!

    Each rail includes a 1/8" NPT hole that allows you to mount a fuel pressure gauge directly to your fuel rail. This puts the fuel pressure gauge in an easily visible spot, so you don't have to poke around in the engine bay just to see if you have fuel pressure. All the ports can accept a -8 ORB fitting in the inlet(s) and outlet, allowing you to run either the OEM B-Series FPR or use the supplied 1/8th NPT plug and the side -8ORB port.

    What intake manifolds is this rail compatible with?

    This rail has been shown to mount to the most popular OEM Honda B-Series intake manifolds on the Honda B16 & B18 engines.

    Is this fuel rail universal?

    Since this fuel rail requires an aftermarket fuel line, there is no specific or direct bolt-on application. It is a universal fuel rail that must use an aftermarket fuel line as it is incompatible with the OEM B-Series fuel line.

    We suggest using our fuel line kit with this rail, item HYB-FLK-01-10

  • 1989-2001 Acura Integra
    1988-2000 Honda Civic
    1993-1997 Honda Del Sol
    1997-2001 Honda CR-V

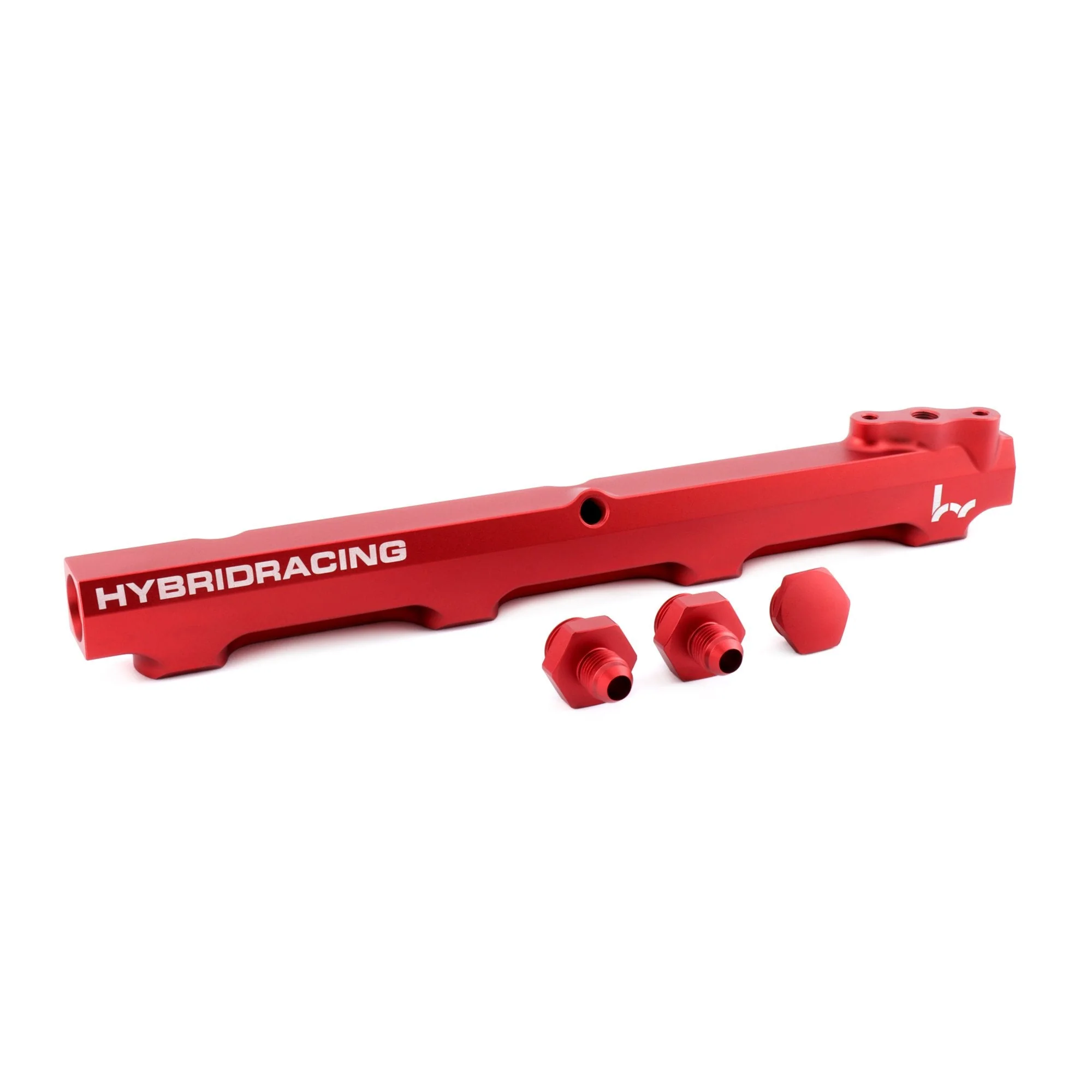

  • (1) B-Series Fuel Rail
    (2) -8 ORB / -6AN Adapter fitting
    (1) -8 ORB Plug
    (2) 1/8th NPT Plug
  • View Install Guide HERE
